Page 11 - DISS_NYRKOVA
P. 11

11

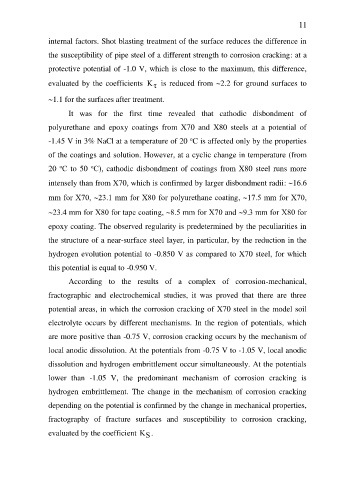

                  internal factors. Shot blasting treatment of the surface reduces the difference in

                  the susceptibility of pipe steel of a different strength to corrosion cracking: at a

                  protective potential of -1.0 V, which is close to the maximum, this difference,

                  evaluated by the coefficients  K  is reduced from 2.2 for ground surfaces to
                                                       τ

                  1.1 for the surfaces after treatment.

                         It  was  for  the  first  time  revealed  that  cathodic  disbondment  of

                  polyurethane  and  epoxy  coatings  from  X70  and  X80  steels  at  a  potential  of

                                                                    o
                  -1.45 V in 3% NaCl at a temperature of 20  C is affected only by the properties
                  of the coatings and solution. However, at a cyclic change in temperature (from

                                 о
                      о
                  20  С to 50  С), cathodic disbondment of coatings from X80 steel runs more
                  intensely than from X70, which is confirmed by larger disbondment radii: 16.6

                  mm for Х70, 23.1 mm for Х80 for polyurethane coating, 17.5 mm for Х70,


                  23.4 mm for Х80 for tape coating, 8.5 mm for Х70 and 9.3 mm for Х80 for

                  epoxy coating. The observed regularity is predetermined by the peculiarities in

                  the structure of a near-surface steel layer, in particular, by the reduction in the

                  hydrogen evolution potential to -0.850 V as compared to X70 steel, for which

                  this potential is equal to -0.950 V.

                         According  to  the  results  of  a  complex  of  corrosion-mechanical,

                  fractographic  and  electrochemical  studies,  it  was  proved  that  there  are  three

                  potential areas, in which the corrosion cracking of X70 steel in the model soil

                  electrolyte occurs by different mechanisms. In the region of potentials, which

                  are more positive than -0.75 V, corrosion cracking occurs by the mechanism of

                  local anodic dissolution. At the potentials from -0.75 V to -1.05 V, local anodic

                  dissolution and hydrogen embrittlement occur simultaneously. At the potentials

                  lower  than  -1.05  V,  the  predominant  mechanism  of  corrosion  cracking  is

                  hydrogen  embrittlement.  The  change  in  the  mechanism  of  corrosion  cracking

                  depending on the potential is confirmed by the change in mechanical properties,

                  fractography  of  fracture  surfaces  and  susceptibility  to  corrosion  cracking,

                  evaluated by the coefficient K .
                                                    S
   6   7   8   9   10   11   12   13   14   15   16
