Page 10 - Dys
P. 10
10

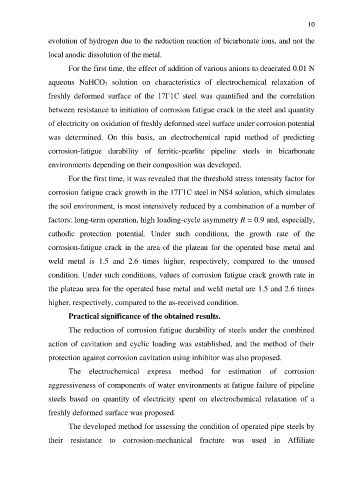

evolution of hydrogen due to the reduction reaction of bicarbonate ions, and not the
local anodic dissolution of the metal.
For the first time, the effect of addition of various anions to deaerated 0.01 N
aqueous NaHCO 3 solution on characteristics of electrochemical relaxation of
freshly deformed surface of the 17Г1С steel was quantified and the correlation
between resistance to initiation of corrosion fatigue crack in the steel and quantity
of electricity on oxidation of freshly deformed steel surface under corrosion potential
was determined. On this basis, an electrochemical rapid method of predicting
corrosion-fatigue durability of ferritic-pearlite pipeline steels in bicarbonate
environments depending on their composition was developed.
For the first time, it was revealed that the threshold stress intensity factor for
corrosion fatigue crack growth in the 17Г1С steel in NS4 solution, which simulates
the soil environment, is most intensively reduced by a combination of a number of
factors: long-term operation, high loading-cycle asymmetry R = 0.9 and, especially,
cathodic protection potential. Under such conditions, the growth rate of the
corrosion-fatigue crack in the area of the plateau for the operated base metal and
weld metal is 1.5 and 2.6 times higher, respectively, compared to the unused
condition. Under such conditions, values of corrosion fatigue crack growth rate in
the plateau area for the operated base metal and weld metal are 1.5 and 2.6 times
higher, respectively, compared to the as-received condition.
Practical significance of the obtained results.
The reduction of corrosion fatigue durability of steels under the combined
action of cavitation and cyclic loading was established, and the method of their
protection against corrosion cavitation using inhibitor was also proposed.
The electrochemical express method for estimation of corrosion
aggressiveness of components of water environments at fatigue failure of pipeline
steels based on quantity of electricity spent on electrochemical relaxation of a
freshly deformed surface was proposed.
The developed method for assessing the condition of operated pipe steels by
their resistance to corrosion-mechanical fracture was used in Affiliate
