Page 9 - Dys

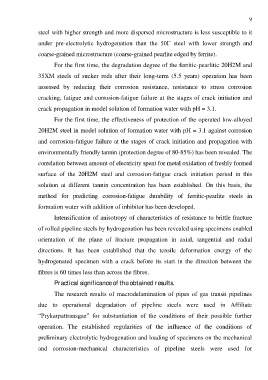

P. 9
9
steel with higher strength and more dispersed microstructure is less susceptible to it
under pre-electrolytic hydrogenation than the 50Г steel with lower strength and
coarse-grained microstructure (coarse-grained pearlite edged by ferrite).
For the first time, the degradation degree of the ferritic-pearlitic 20H2M and
35ХМ steels of sucker rods after their long-term (5.5 years) operation has been
assessed by reducing their corrosion resistance, resistance to stress corrosion
cracking, fatigue and corrosion-fatigue failure at the stages of crack initiation and
crack propagation in model solution of formation water with pH = 3.1.
For the first time, the effectiveness of protection of the operated low-alloyed
20H2M steel in model solution of formation water with pH = 3.1 against corrosion
and corrosion-fatigue failure at the stages of crack initiation and propagation with
environmentally friendly tannin (protection degree of 80-85%) has been revealed. The
correlation between amount of electricity spent for metal oxidation of freshly formed
surface of the 20H2M steel and corrosion-fatigue crack initiation period in this
solution at different tannin concentration has been established. On this basis, the
method for predicting corrosion-fatigue durability of ferritic-pearlite steels in
formation water with addition of inhibitor has been developed.
Intensification of anisotropy of characteristics of resistance to brittle fracture
of rolled pipeline steels by hydrogenation has been revealed using specimens enabled
orientation of the plane of fracture propagation in axial, tangential and radial
directions. It has been established that the tensile deformation energy of the
hydrogenated specimen with a crack before its start in the direction between the
fibres is 60 times less than across the fibres.
Practical significance of the obtained results.
The research results of macrodelamination of pipes of gas transit pipelines
due to operational degradation of pipeline steels were used in Affiliate
“Prykarpattransgaz” for substantiation of the conditions of their possible further
operation. The established regularities of the influence of the conditions of
preliminary electrolytic hydrogenation and loading of specimens on the mechanical
and corrosion-mechanical characteristics of pipeline steels were used for
